Front Rallyraid SP05 differential with self locking diff

15 754,72 EUR



  • Art.no: SP050020144
  • In stock: 0 KPL

Description

This product is sold only by request. No webshop sale for this product. ESTIMATED DELIVEY TIME 12-14 WEEKS. Please contact info@setpromotion.com

Complete diiferential price starts from 12 705,42€ + VAT 24%.

Delivery cost will be added to the total price. Estimated delivery cost in Europe is 200€ + VAT 24%.

For more details please contact info@setpromotion.com

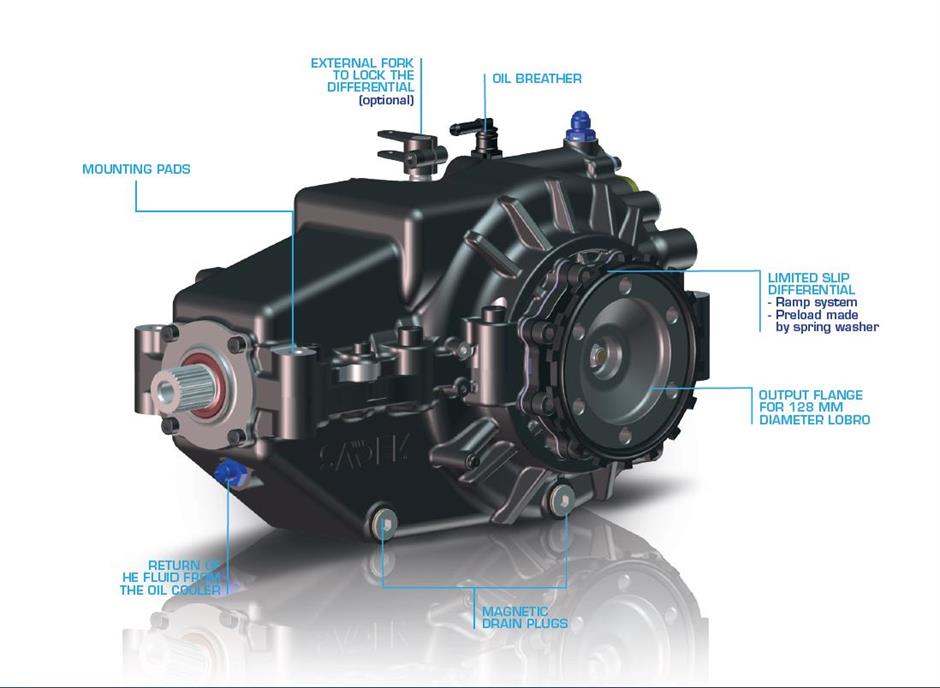

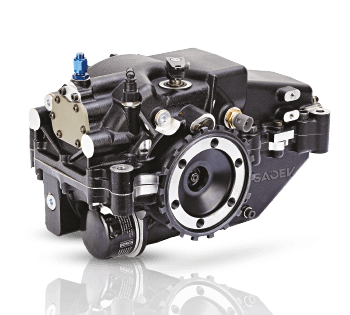

The SPO5 differential is designed to offer a complete product incorporating many vital functions for rally raid use. Its high load capacity and variety of features make the SPO5 a complete, fully developed product.

  • Bevel gear ratio : 8x31
  • The bevel gear is cut and grinded in house on our CNC units
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Central limited slip differential
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Anti-friction coating on odd discs
  • Anti wear steel flat discs
  • Wide range of ramp plates available
  • Differential locking system (optional)
  • Splash lubrication system

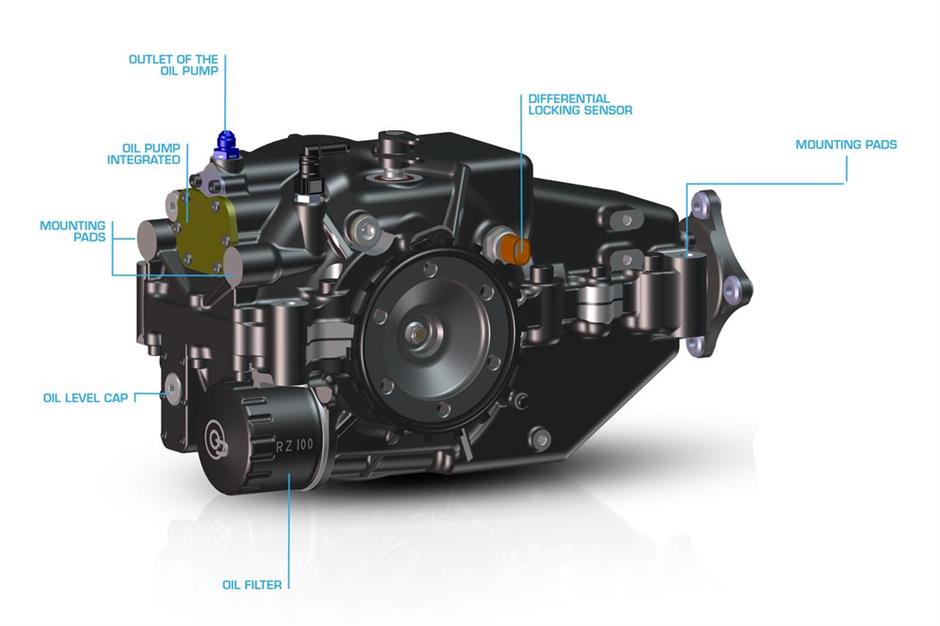

  • Oil pump integrated
  • Lubrication lines through the casing
  • Directed and pressurised lubrication on the bevel gear
  • Oil filter integrated
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Assembled with spacers and studs
  • Casing joint faces sealed with O'rings
  • Output flange for 128 mm diameter Lobro
  • Weight : 36 kg - 79 lbs
