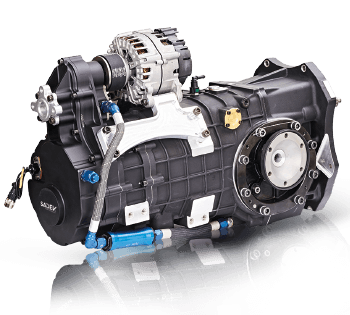

6 speed SL90-23 rally-raid gearbox without bell housing

32 345,73 EUR



  • Art.no: SL902360040433
  • In stock: 0 KPL

Description

This product is sold only by request. No webshop sale for this product. ESTIMATED DELIVEY TIME 12-14 WEEKS. Please contact info@setpromotion.com

Complete gearbox price starts from 26 085,27€ + VAT 24%.

Delivery cost will be added to the total price. Estimated delivery cost in Europe is 400€ + VAT 24%.

For more details please contact info@setpromotion.com

Designed primarily for two-wheel-drive rally-raid, the SL9O-23 is designed for driving across dunes, steppes and the trickiest terrain. Thanks to its ingenious design, it absorbs heavy loads from V8-type engines and sudden increases in torque administered by the most difficult circuits.

  • 6 speed sequential gearbox + 1 reverse gear
  • Super-polished bevel gear ratio 9x34 or 8x35
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts

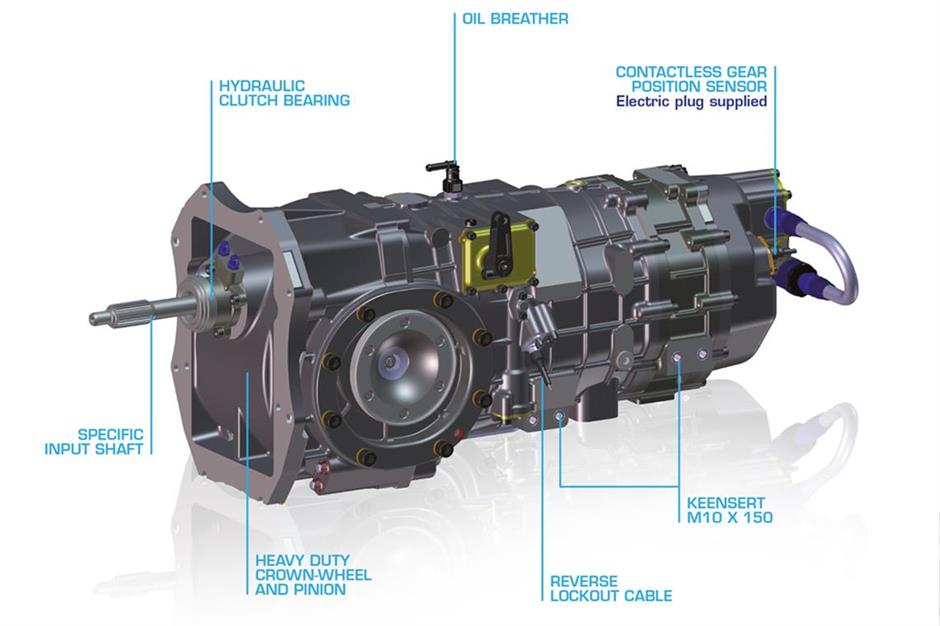

  • Specific input shaft
  • Hydraulic clutch bearing
  • Central limited slip differential
  • Ramp and plate system - 3 discs type
  • Preload made by belleville spring washer
  • Wide range of ramp plates available
  • Reverse lockout cable or option of solenoïd

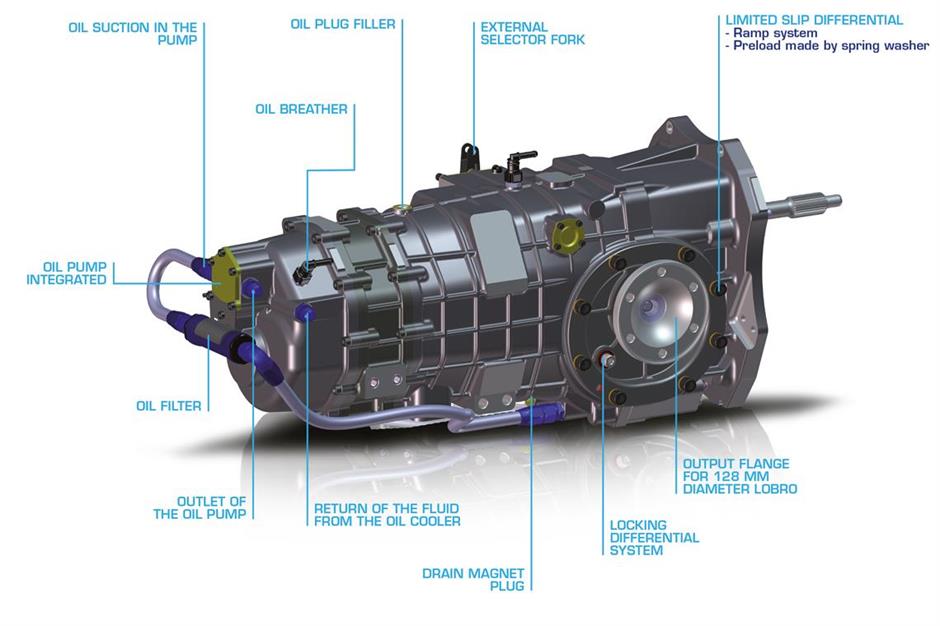

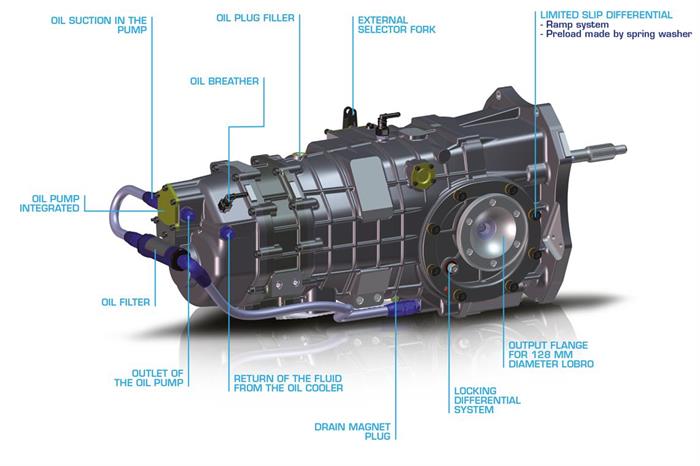

  • Splash lubrication system
  • Oil pump integrated
  • Directed and pressurised lubrication on the gears and bevel gear
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Assembled with spacers and studs
  • Weight (input shaft included) : 85 kg - 187 lbs
