6 Speed SL90-20 Gearbox

18 886,45 EUR



  • Art.no: SL902060081133
  • In stock: 0 KPL

Description

This product is sold only by request. No webshop sale for this product. ESTIMATED DELIVEY TIME 12-14 WEEKS. Please contact info@setpromotion.com

Complete gearbox price starts from 15 231,01€ + VAT 24%.

Delivery cost will be added to the total price. Estimated delivery cost in Europe is 400€ + VAT 24%.

For more details please contact info@setpromotion.com

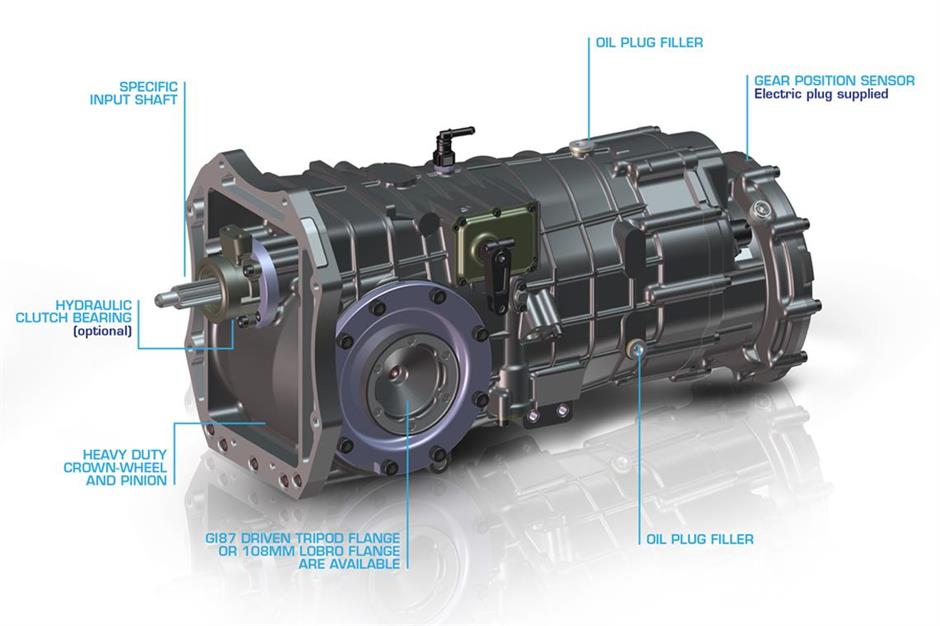

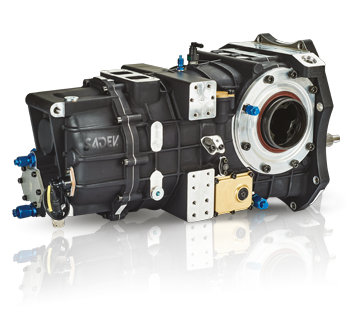

Flexibility is the best word to describe the SL9O-2O transmission. Its variety of adaptable parts enables us to build a gearbox tailored to your needs. As well as accepting heavy loads, it comes in several versions: with or without load-bearing casing, 5 or 6 speeds, self-locking differential cartridge etc.

  • 6 speed sequential gearbox + 1 reverse gear
  • Bevel gear ratio : 9x35 or 10x31
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft

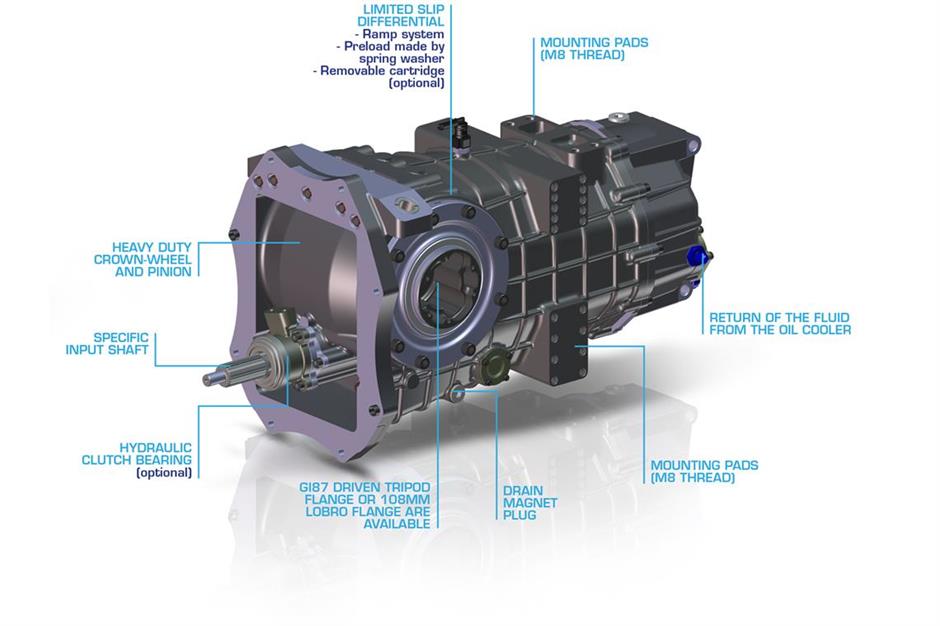

  • Limited slip differential
  • Ramp and plate system - 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Reverse lockout cable
  • Oil pump integrated (optional)
  • Internal lubrication ramp (optional)
  • Painted AS7G aluminum casings
  • Assembled with spacers and studs
  • Case joint faces sealed with O'rings
  • Weight (input shaft included) : 60 Kg - 132 lbs
