6 Speed short version gearbox SCL82-17 without gear lever

8 546,02 EUR

  • Art.no: SCL821703
  • In stock: 0 KPL


This product is sold only by request. No webshop sale for this product. ESTIMATED DELIVERY TIME 8-12 WEEKS. Please contact info@setpromotion.com

Complete gearbox price starts from 6 891,95€ + VAT 24%.

Delivery cost will be added to the total price. Estimated delivery cost in Europe is 200€ + VAT 24%.

You can use this use this short version gearbox in cars like BMW M3, Volvo 240 and many others. It’s also a good package to replace transmissions in other cars which are equipped with Volvo transmission.

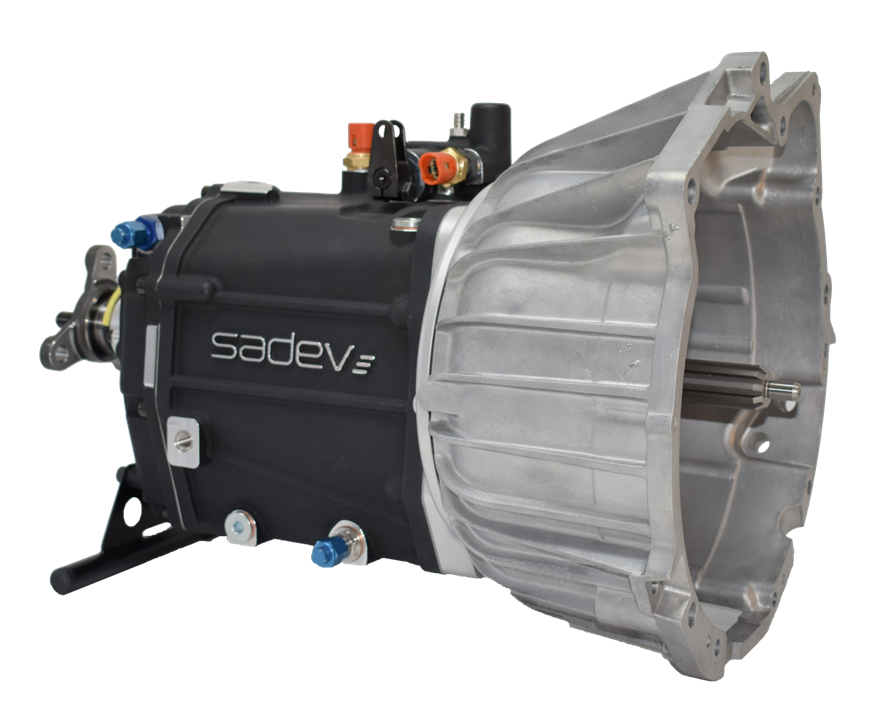

Mounting plate and BMW automatic gearbox bellhousing are available from us. With these components you can use your original BMW M3 propshaft. Also many other mounting plates are available. SCL82-17 gearbox fits directly Ford type 9 bellhousing.

Load the gear ratios list here.

For more details please contact info@setpromotion.com

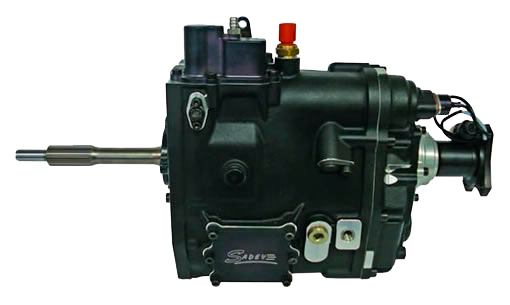

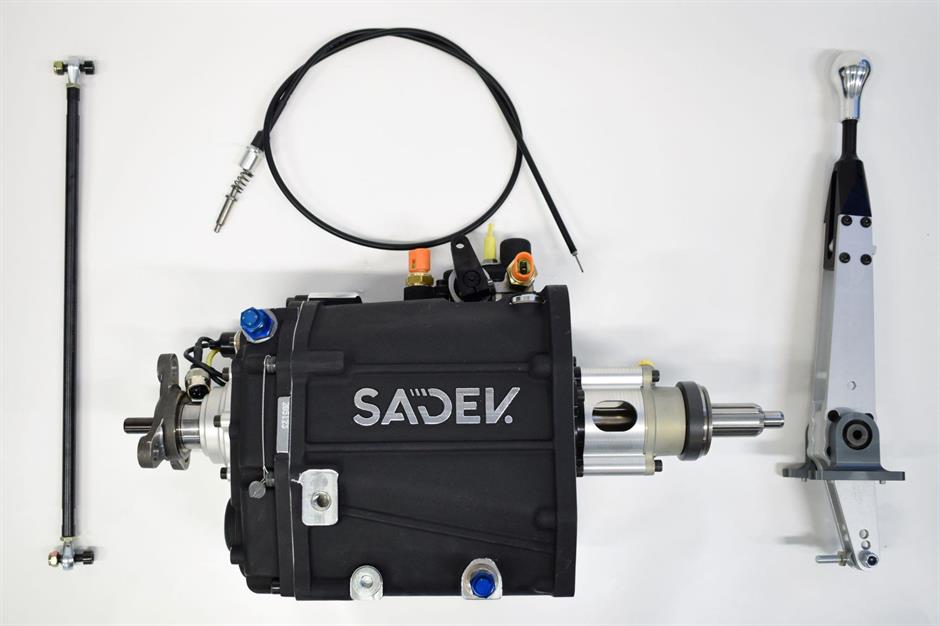

The best seller in SADEV's in-line gearbox range, the SCL82-17 offers an ultra-powerful, affordable solution for multiple uses. Its small size means it can fit into Caterham-type cars. Thanks to its rally, rallycross and track results, the SCL82-17 is universally recognised for its quality and robustness.

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection
  • Direct gear ratio : 19x20 or 19x22
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Hydraulic clutch bearing (optional)
  • Reverse lockout cable
  • Contactless gear position sensor
  • Contactless flat shift sensor
  • Splash lubrication system
  • Fittings to connect external oil cooler
  • Oil suction screen
  • Magnetic drain plugs
  • Painted AS7G aluminum casings
  • Casing joint faces sealed with O'rings
  • 1315 U-joint or BMW Guibo flex disc flange
  • Weight (long tail version with gearlever) : 30 Kg - 66 lbs
  • Weight (short version) : 27 Kg - 59 lbs
